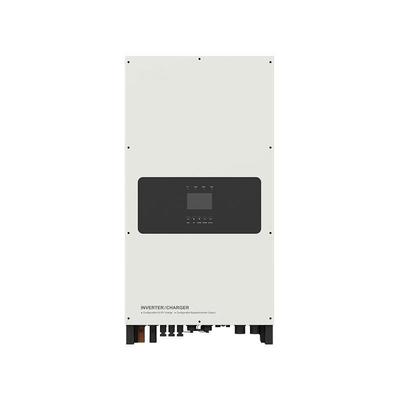

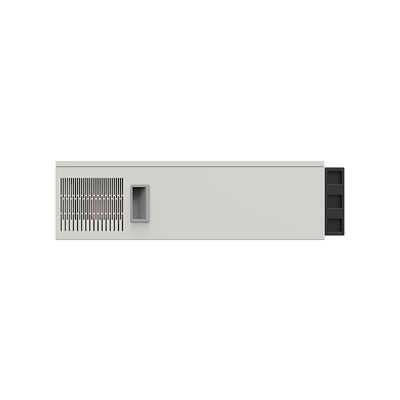

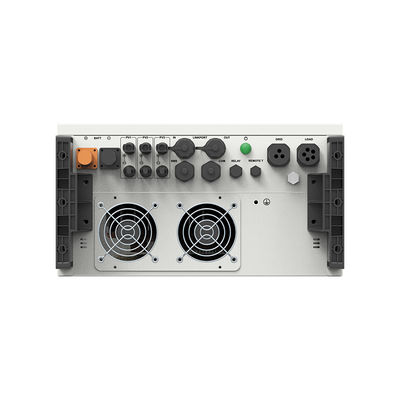

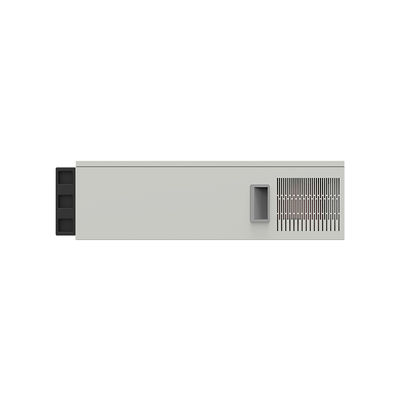

MP series, a multifunctional low-frequency split-phase output hybrid inverter, that supports utility charging, oil generator charging, solar charging, dual voltage output, power feedback, and energy management. It supports parallel operation for multiple units in a single phase or three phase. The inverter with the power of 3KW and 5KW perfectly suits residential applications, schools, health facilities, government buildings, cottages, and areas where the electricity is unstable.
Specification
|
Model
|
MP3043-1020P65
|
MP5043-1020P65
|
|
Rated battery voltage
|
48VDC
|
|
Battery work voltage range
|
42.4VDC to 64.0VDC
|
|
Battery type
|
Lithium battery/lead-acid battery
|
|
Inverter output
|
|
Continuous output power(@25℃/4H)
|
3000W
|
5000W
|
|
5S Continuous output power (@25℃)
|
6000W
|
10000W
|
|
Rated output voltage
|
220VAC/230VAC/240VAC±5%; 110VAC/115VAC/120VAC±5%
|
|
Rated output frequency
|
50Hz/60Hz±0.5Hz
|
|
Output wave
|
Pure Sine Wave
|
|
Load power factor
|
0.2－1(VA ≤ continuous output power)
|
|
Distortion THD
|
≤ 5% (Resistive load)
|
|
Max. inverter efficiency
|
＞93.6%
|
|
Full load efficiency
|
＞90%
|
|
Utility transfer time
|
≤10mS
|
≤10mS
|
|
Inverter to bypass transfer time
|
≤1mS
|
≤1mS
|
|
Utility input
|
|
Utility work voltage range
|
170VAC to 285VAC
|
|
Utility input frequency range
|
40Hz to 70Hz
|
|
Rated Utility input power
|
4500W(@240VAC)
|
7500W(@240VAC)
|
|
(Charging plus Bypass)
|
|
Utility charging power factor
|
About 1
|
|
Max. Utility charging current
|
50A
|
80A
|
|
Solar charging
|
|
Max. PV open circuit voltage
|
195V (At minimum operating environment temperature)
180V (At 25℃)
|
|
MPPT working voltage
|
(Battery voltage plus 10V) to 145V
|
|
Max. PV charging power
|
5000W (1700W/way)
|
|
Max. PV charging current
|
100A (34A/way)
|
|
MPPT tracking efficiency
|
≥99.5%
|
|
Charging conversion efficiency
|
＞95%
|
|
Temperature compensate coefficient
|
-3mV/℃/2V (Default)
|
|
Inverter/charger charging current
|
|
Max. inverter/charger charging current
|
Default 100A (Settable, range 0－100A)
|
|
Others
|
|
No-load consumption
|
≤ 48V/ 0.7A
|
|
Model
|
MP3043-1020P65
|
MP5043-1020P65
|
|
Static consumption
|
≤ 48V/ 0.15A
|
|
Enclosure
|
IP65
|
|
Relative humidity
|
< 95% (N.C.)
|
|
Altitude
|
4000m (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
|
Work temperature
|
-20℃ to 55℃ (When the environment temperature exceeds 25℃, the actual output power is reduced appropriately)
|
|
Storage temperature
|
-40℃ to 60℃
|
|
Mechanical parameters
|
|
Dimension (Length x Width x Height)
|
848mm×435mm×249mm
|
935mm×475mm×255mm
|
|
Mounting size (Length x Width)
|
260mmx160mm
|
260mmx160mm
|
|
Mounting hole size
|
Ф10mm
|
Ф10mm
|
|
Net Weight
|
52.0kg
|
66.0kg
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
