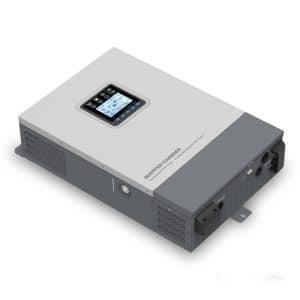

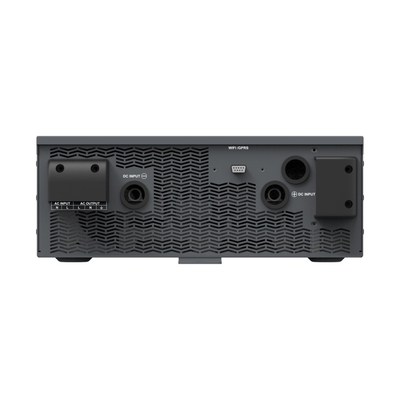

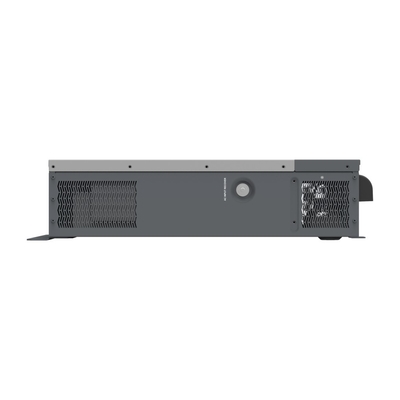

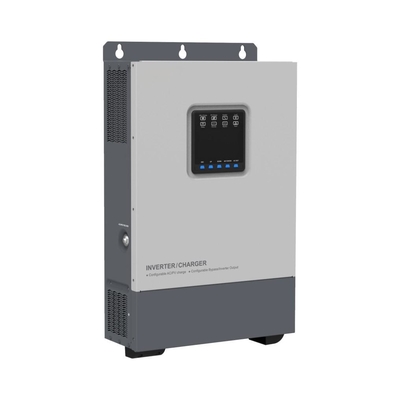

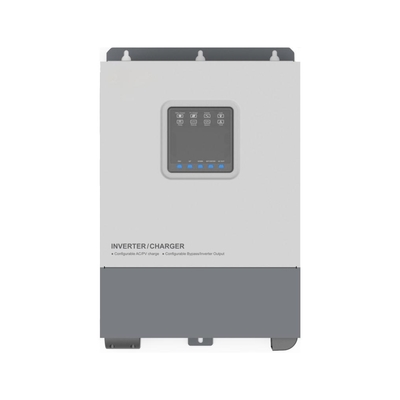

UPower-Hi series, an upgrade hybrid inverter charger that supports utility charging, oil generator charging, solar charging, utility output, inverter output, and energy management. To maximize solar energy utilization, users can choose energy sources according to actual needs and flexibly take the utility as a supplement in the hybrid system. This inverter charger provides high-quality, high-stability, and high-reliability electric energy to the users by improving the solar system's power supply efficiency
Specification
|
Item
|
UP2000-HM6021
|
UP3000-HM10021
|
UP3000-HM5041
|
UP3000-HM8041
|
|
Rated battery voltage
|
24VDC
|
48VDC
|
|
Battery input voltage
|
21.6~32VDC
|
43.2~64VDC
|
|
Max. battery charging current
|
60A
|
100A
|
50A
|
80A
|
|
Inverter output
|
|
Continuous output power
|
2000W
|
3000W
|
3000W
|
3000W
|
|
Max. surge power(3S)
|
4000W
|
6000W
|
6000W
|
6000W
|
|
Output voltage range
|
110VAC(-3%~+3%), 120VAC(-10%~+3%)
|
|
Output frequency
|
50/60±0.2%
|
|
Output wave
|
Pure Sine Wave
|
|
Load power factor
|
0.2-1(Load power ≤ Continuous output power)
|
|
Distortion THD
|
THD≤5%(Resistive load)
|
|
80% rated output efficiency
|
89%
|
90%
|
91%
|
91%
|
|
Max. Rated output efficiency
|
88%
|
88%
|
90%
|
90%
|
|
Max. output efficiency
|
90%
|
92%
|
92%
|
92%
|
|
Switch time
|
10ms(Switch from the utility output to the inverter output), 15ms(Switch from the inverter output to the utility output)
|
|
Utility charging
|
|
Utility input voltage
|
88VAC~132VAC (Default), 80VAC~140VAC(Programmable)
|
|
Utility input frequency
|
40~65Hz
|
|
Max. utility charge current
|
60A
|
80A
|
40A
|
40A
|
|
Solar charging
|
|
Max. PV open circuit voltage
|
250V(At minimum operating environment temperature), 220V(At 25℃ environment temperature)
|
|
MPPT voltage range
|
60~200V
|
|
Max. PV input power
|
2000W
|
3000W
|
3000W
|
4000W
|
|
(Note: For the curve of Max. PV input power Vs. PV open-circuit voltage, see chapter 3.4 Operating mode for details.)
|
|
Max. PV charging power
|
1725W
|
2875W
|
2875W
|
4000W
|
|
Max. PV charging current
|
60A
|
100A
|
50A
|
80A
|
|
Equalize charging voltage
|
29.2V(AGM default)
|
58.4V(AGM default)
|
|
Boost charging voltage
|
28.8V(AGM default)
|
57.6V(AGM default)
|
|
Float charging voltage
|
27.6V(AGM default)
|
55.2V(AGM default)
|
|
Low voltage disconnect voltage
|
21.6V(AGM default)
|
43.2V(AGM default)
|
|
Tracking efficiency
|
≥99.5%
|
|
Temp. compensate coefficient
|
-3mV/℃/2V(Default)
|
|
General
|
|
Surge current
|
50A
|
60A
|
56A
|
95A
|
|
Zero load consumption
|
<1.6A
|
<1.6A
|
<1.2A
|
<0.8A
|
|
(without PV and utility connection, turn on the load output)
|
|
Standby current
|
<1.2A
|
<1.0A
|
<0.7A
|
<0.6A
|
|
(without PV and utility connection, turn off the load output)
|
|
Mechanical Parameters
|
|
Dimension(H x W x D)
|
607.5x381.6x127mm
|
642.5x381.6x149mm
|
642.5x381.6x149mm
|
642.5x381.6x149mm
|
|
Mounting size
|
585*300mm
|
620*300mm
|
620*300mm
|
620*300mm
|
|
Mounting hole size
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
|
Net Weight
|
15kg
|
19kg
|
19kg
|
19kg
|
|
Enclosure
|
IP30
|
|
Relative humidity
|
< 95% (N.C.)
|
|
Environment temperature
|
-20℃~50℃
|
